- Size: 120CBM
- Place of Origin: China
- Brand Name: HONGDA
- Model Number: ZZ5307N4647W
- Weight: 29000.000 kg

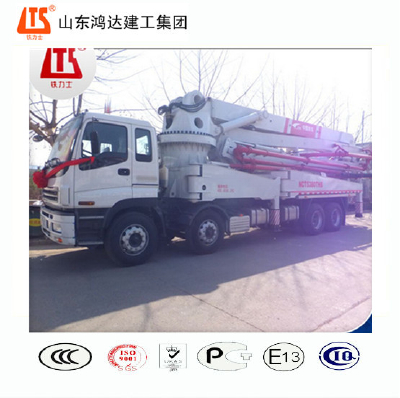

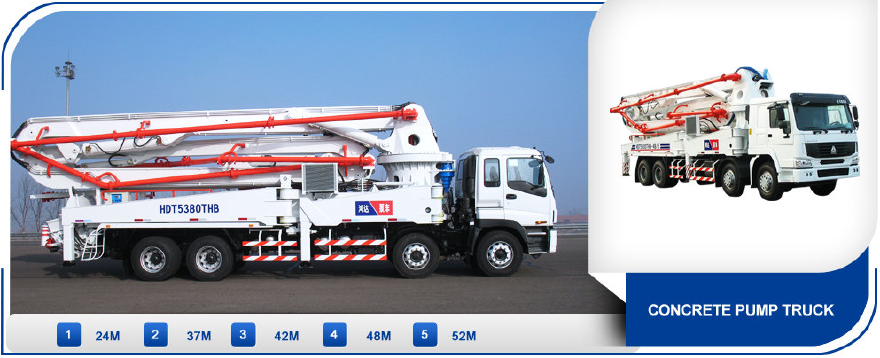

ISUZU 48M Truck Mounted Concrete Pump Truck
HONGDA Group is the biggest construction machinery manufacturer and exporter in Shandong province and has more than 25 years history.
Main products :Mixer truck、 concrete boom pump truck 、 tower crane 、 construction excavator 、 mixer plant 、 asphalt plant 、 drilling machine 、 road roller and so on.
Main markets :
We have exported to Africa,Asia and Latin-America ,more than 80 countries.
Africa: Algeria、 Egypt 、 Angola 、 Ethiopia 、 Djibouti 、 Rwanda 、 Kenya 、 Uganda 、 Mozambique 、 Tanzania 、 Nigeria 、 Cote d`lvoire 、 Sudan 、 Congo .Etc.
Asia: Laos、 Philippines 、 Malaysia 、 Indonesia 、 Vietnam 、 Kazakhstan 、 Uzbekistan 、
Latin-America: Mexico、 Argentina 、 Chile 、 Uruguay 、 Venezuela 、 Columbia /Etc.
2. The HBC wireless remote control unit imported with original German .Packaging is light in weight and easy to carry.
3. Electric cabinet with totally-imported components; control modules like PLC are all products from the German company SIEMENS.
4 . e quipped with originally-imported REXROTH valves and valves made by Italian oil-control companies；
5.Equipped with the German STEIBEL transfer case
6.All the steel plates for the boom system are high-strength cold rolling steel plates made by the Sweden company SSAB.
7.Equipped with HAWE proportional multi-way valves imported with original German packaging；
Items | unit | 37M | Items |
Main Technical Parameters in | Theoretical Pumping Capacity | m3/h | 125 |
Pumping Capacity Index | Mpa.m3/h | 586 | |
Theoretical Pumping Pressure | Mpa | 8.5 | |
Hopper Capacity | L | 700 | |
Feeding Height | mm | 1370 | |
Distributing Valve Form |
| S-pipe valve | |
Max. Distributing Radius | m | 32.6 | |
Max. Distributing Height | m | 36.6 | |
Max. Distributing Depth | m | 25.5 | |
Height of Distributing Boom When Stretched | mm | 8450 | |
Distance between Front Landing Legs | mm | 7058 | |
Distance between Rear Landing Legs | mm | 6848 | |
Distance between Front and Rear Landing Legs | mm | 6790 | |
Diameter of Conveying Pipe | mm | 125 | |
Length of Tail Hose | m | 4 | |
Rotary Range of Distributing Boom |
| 365° | |
Number of Boom Sections |
| 4 | |
Rotary Angle of Each Boom Section | ° | 92/180/180/270 | |
Close-control Distance | m | 33 | |
Main Technical Parameters in
| Max. Traveling Speed | km/h | 90 |
Min. Turning Radius | mm | 8800 | |
Brake Distance | m | 7 | |
Approach Angle | ° | 16 | |
Departure Angle | ° | 11 | |
Chassis Model | | ISUZU | |
Wheel Base between the First and the Second Axle | mm | 4600 | |
Wheel Base between the Second and the Third Axle | mm | 1350 | |
Front Tread | mm | 2022 | |
Rear Tread | mm | 1830 | |
Front axle | tons | 7 | |
Rear axles | tons | 32 | |
Tyres |
| 12.00R20 | |
Transmission |
| 10 | |
Cab |
| ISUZU | |
Max. Engine Power | kw | 265(2200r/min) | |
Horsepower | 360 | ||
Engine Model |
| ISUZU Brand | |
Max Engine Torque | n.m | 1500 | |
Max. Grade Ability | % | 35 | |
Overall Dimension (L ×W× H) | mm | 12800×2490×3850 | |
Full-load Total Weight | kg | 29000 | |
Color | | White |
