- Size: 100cbm
- Place of Origin: Shandong Province, China
- Brand Name: HONGDA
- Model Number: QTZ160
- Weight: 14850.000 kg

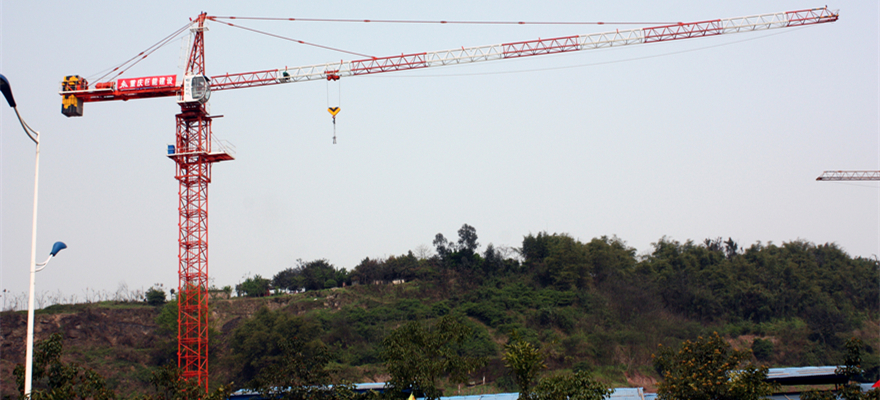

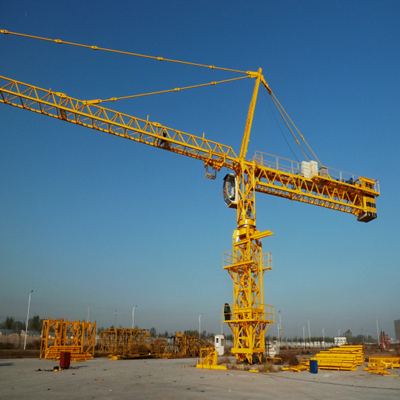

Hongda TIELISHI series of tower cranes are one of Hongda's leading products. They cover a large working scope from QTZ31.5(3 ton) to QTZ500 (25ton)with travel range varying from 30m to 80m,Topless tower crane, Hat-head tower crane,Luffing tower crane, Inner climbing tower crane, Mobile tower crane, Wireless remote tower crane have multiple working methods and apply to many purposes.
- Horizontal jib frame
- Trolley traveling
- Hydraulic self-climbing
- Original mechanism
- All safety devices well-equipped
- improved working speed
- Good speed control property
- Smooth and efficient working
Model | QTZ160(6018) |
Jib length (M) | 60/55/50/45/40 |
Basic height(M) | 49/46 |
Up to max. height(M) | 201 |
Max load | 10 |
Wall tie bar up to max height | 6 |
Main material | square steel tube 135*135*12 |
Standard mast unit section dimension(m) | 1.84× 1.84× 2.5 |
Lifting speed (a=2)m/min | 0-80 |
slewing speed r/min | 0-0.7 |
trolley travel speed m/min | 0-60 |
Total motor power kw | 55 |
Free height weight kg | 55,000 |
Counter weight | 20880 |
Base form | 1. Cross beam with base ballast 2. cross beam without base ballast 3. embeded standing legs |
Main parameters :
Max jib: 56m-1 ton/46m-1.3ton/41m-2.1ton(specail length is available for special order)
Max load : 6 ton
Basic hook height: 41m
Max height:161m with 6 units wall tie bar
Main material: square steel tube 135*135*10
Mast section: 1.84*1.84*2.5
Hoisting speed: 80/40/10 m/min
Slewing speed: 0-0.62r/min
Trolley speed:40/20m/min
Climbing speed : 0.6m/min
Total motor power: 38.3kw
Weight for basic height: 36800kg
Counter weight: 14850kg
