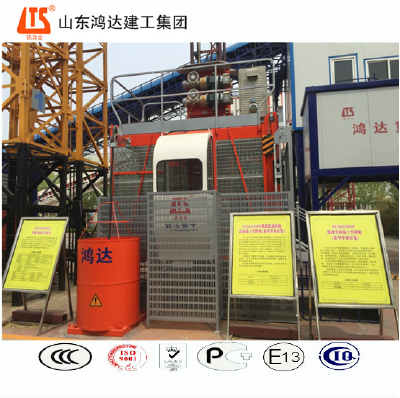

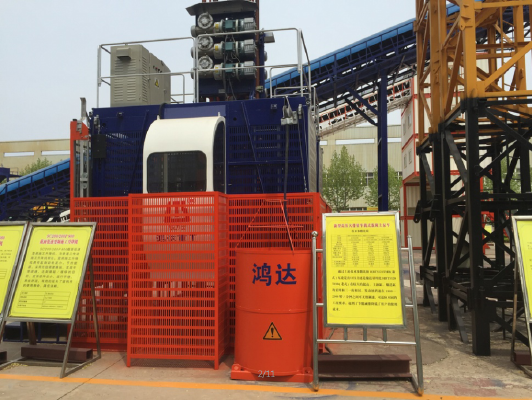

Construction Elevator Introduction
Our construction elevators are widely used at the sites of industrial and civil construction, bridge construction, underground construction, large chimney construction, ship industry and so on. Being suitable for the vertical transport of materials and people, they can also be used as permanent / semi-permanent electric elevators and in various sites like warehouses and high towers. They are known for their stable performance, reliable safety, easy transportation and strong adaptability, which can enhance work efficiency and reduce workers labor intensity
SC serialization of products Hoist is a Rack and Pinion EL.Building lifter widely applies to such contruction sites as industrial and civil architecture,bridge,underground,large chimney,and ship industry,etc. It suits the vertical transport of materials and personnels and also suits such different occasions as warehouses,high towers, etc.
It is installed and dismounted conveniently and can grow as high as the building grows height.The lifter has such advantages as steady property, safety, reliability,flexible carrying,and good adaptability,etc.,improves working efficiency,and can reduce workers’ working intensity.
- Size: 1
- Place of Origin: China
- Brand Name: HONGDA
- Model Number: SC200
- Weight: 1000.000 kg
SCD200 series of building lifter main technical parameters
Parameter name | unit | parameters |
SC200/200 | ||
Rating loading capacity | Kg | 2×2000 |
Passenger number | People | 2×16 |
Rated lifting height | M/min | 36 |
Max. lifting height | m | 200 |
Motor power | KW | 2×3×11 |
Inner dimension of cage | m | 3×1.3×2.2 |
mast section weight | Kg | 148 |
mast section dimension | m | 650×650×1508 |
Hanger rated lifting capacity | Kg | 200 |
